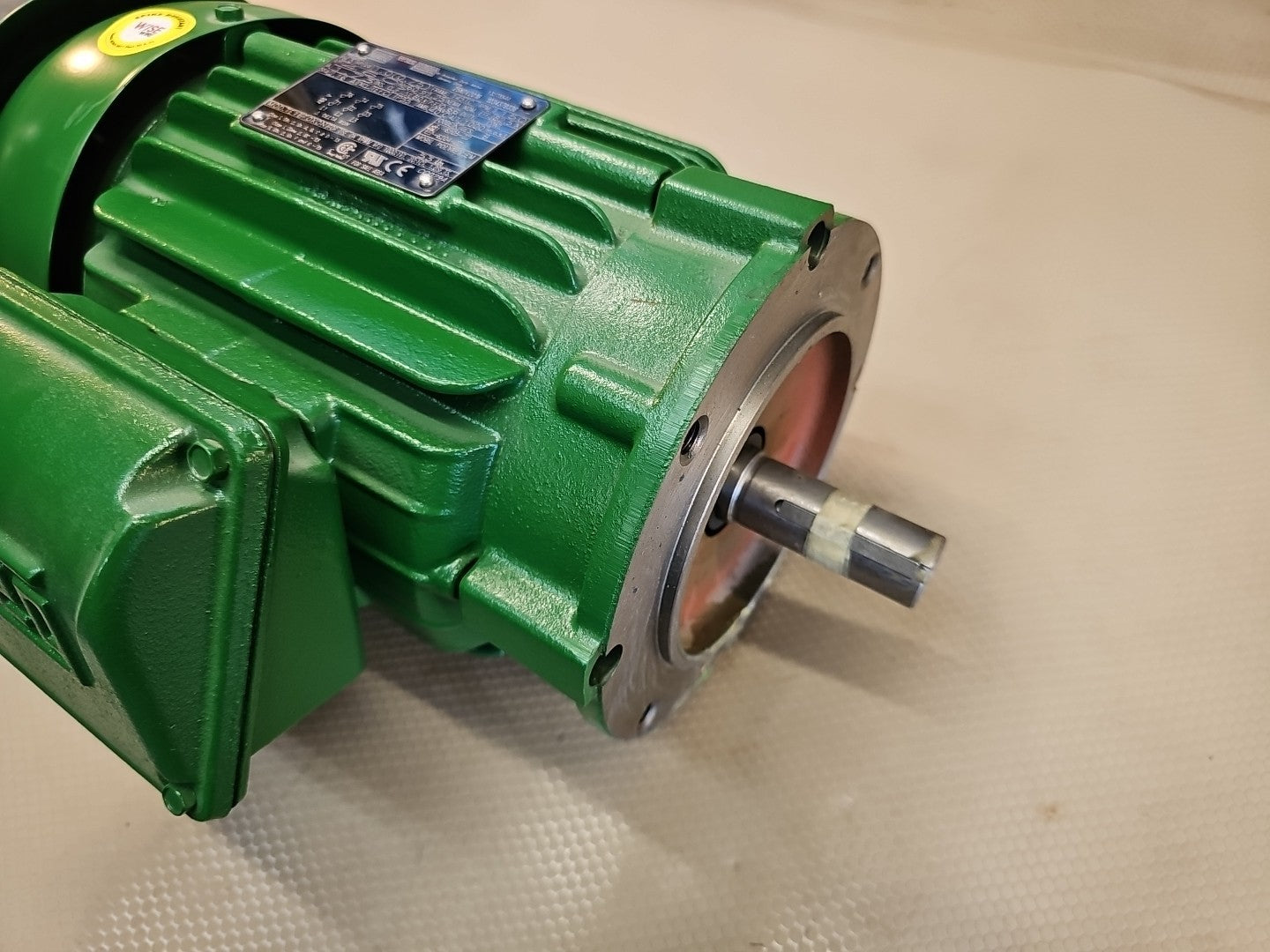

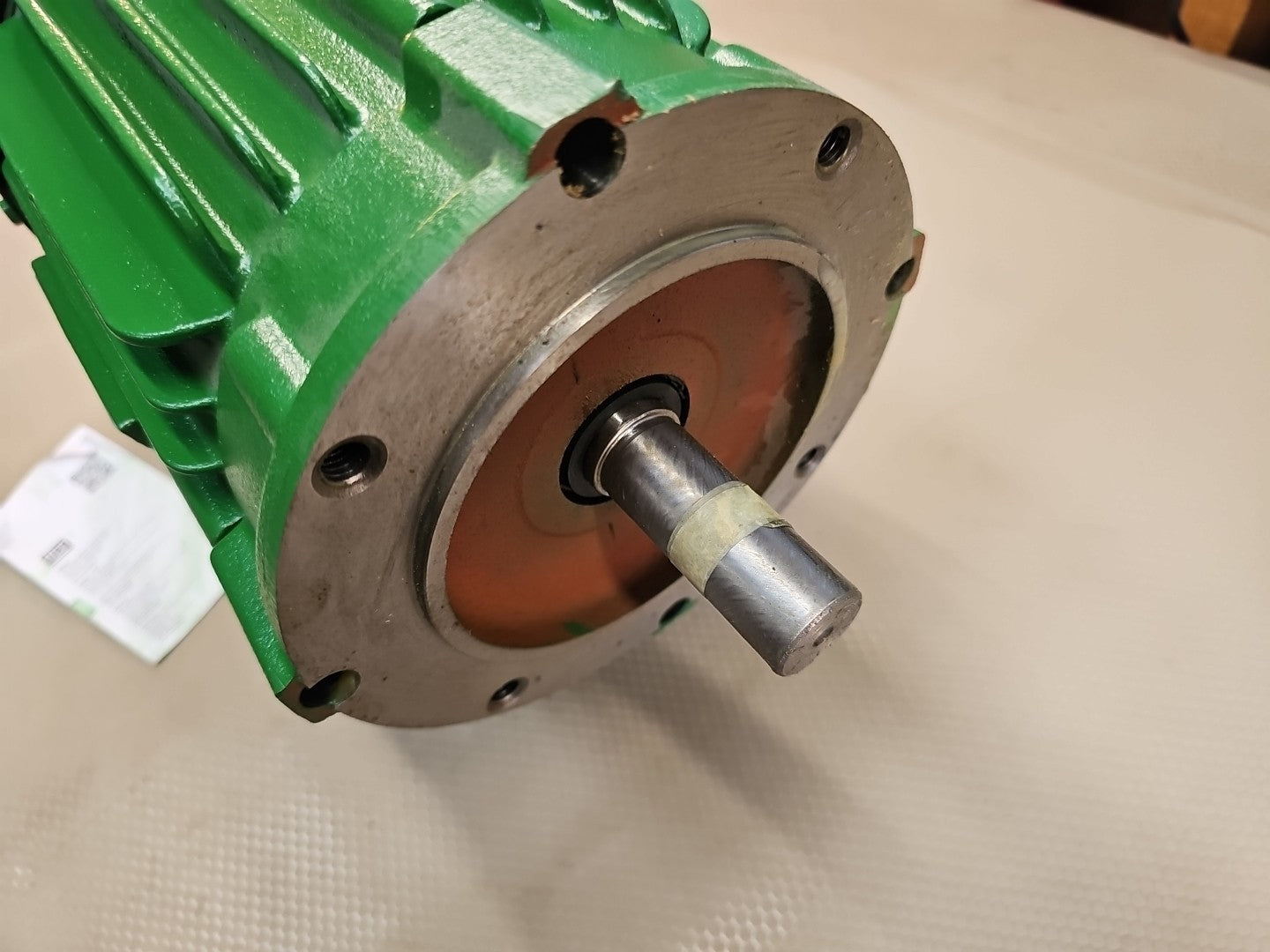

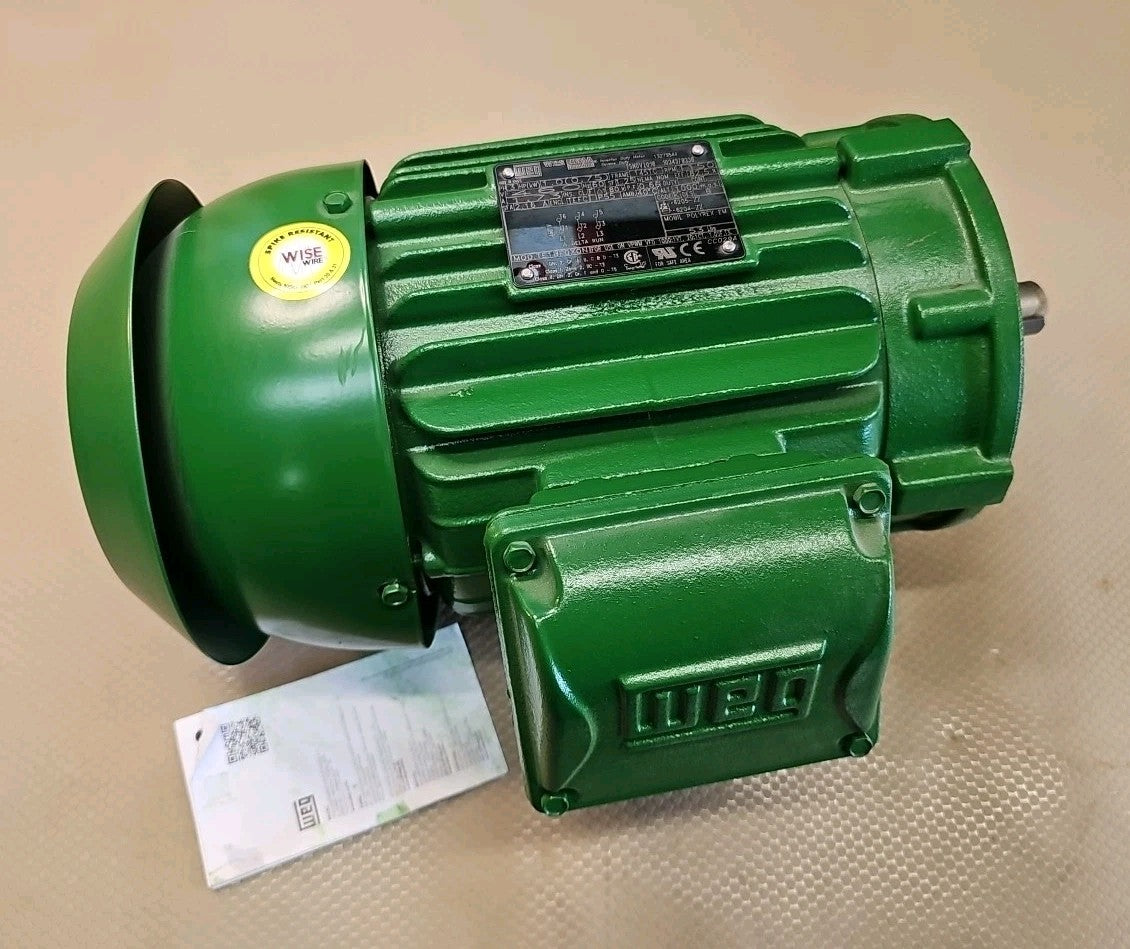

NEW WEG W22 3HP 1760 RPM 182/4TC 3Ph TEFC NEMA Premium Electric Motor te1bfoxon
$234.82
New in box. May have blemishes from being moved around, but never used.
Brand / Series: WEG W22
Phase: 3 (PH 3)
Horsepower: 3 HP (2.20 kW)
Voltage: 460 V
Amps: 4.16 A
Frequency: 60 Hz (also shows 50 Hz rating)
RPM: 1760 (60 Hz) / 1450 (50 Hz)
Frame: 182/4TC
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Duty: CONT (continuous duty)
Service Factor: 1.25
Insulation Class: F (155°C)
Ambient: 40°C
Efficiency: NEMA Premium
Code / NEMA design: Code K, Design B
Bearings: 6205-Z (both ends)
Weight: 53.3 lbs (24.2 kg)
Grease: Mobil Polyrex EM
