HANSVEDT MODEL SM-130 ELECTRICAL DISCHARGE MACHINE (EDM)
SPECIFICATIONS
WORKTABLE TRAVEL: 6" X 8" (152 X 203MM)
WORKTABLE SIZE: 9" X 15" (229 X 381MM)
WORKTANK SIZE: 13" X 20" X 9" DEEP (330 X 508 X 229MM DEEP)
WORKTANK CAPACITY: 30 GAL (114 LT)
RAM TRAVEL: 6" (152MM)
PLATEN SIZE: 5" X 13" (127 X 337MM)
MAXIMUM ELECTRODE WEIGHT: 300 LB (135 KG)
PLATEN-TO-TABLE DISTANCE: 16" MAX (406MM MAX)
GENERAL DIMENSIONS (HEIGHT/WIDTH/DEPTH): 72" X 60" X 30" (1829 X 1524 X 762MM)
NET WEIGHT: 1350 LB (613 KG)
COLOR: MACHINE TOOL GRAY
DIELECTRIC SYSTEM
RESERVOIR CAPACITY: 9.4 GAL (36 LT)
FLUSHING PRESSURE: ADJUSTABLE 0-50 PSI
VACUUM: 0-15 IN HG
FILTRATION: REPLACEABLE ELEMENT, 5 MICRON
POWER SUPPLY
POWER INPUT (STANDARD): 105-125 VAC, 60 HZ, 1 PH, 30-AMP
POWER INPUT (OPTIONAL): OTHER VOLTAGES AND FREQUENCIES ON REQUEST.
MAXIMUM AVERAGE CURRENT: 1, 2, 5, 10, 15, 20-AMP (40-AMP OPTIONAL)
EDM CONTROLS: % ON-TIME, FREQUENCY (.5-250KHZ), GAP SPACING, ARC-SENSOR, POLARITY, OUTPUT POWER LEVEL
ARC DURATION RANGE: 1.5 TO 1800 MICROSECONDS
SERVO CONTROLS: AUTO, MANUAL, DITHER, EDGE-FINDER, SPEED
MAXIMUM STOCK REMOVAL RATE (20-AMP): 1.2 CU IN/HR (GRAPHITE/STEEL) AND .5 CU IN/HR (GRAPHITE/STEEL)

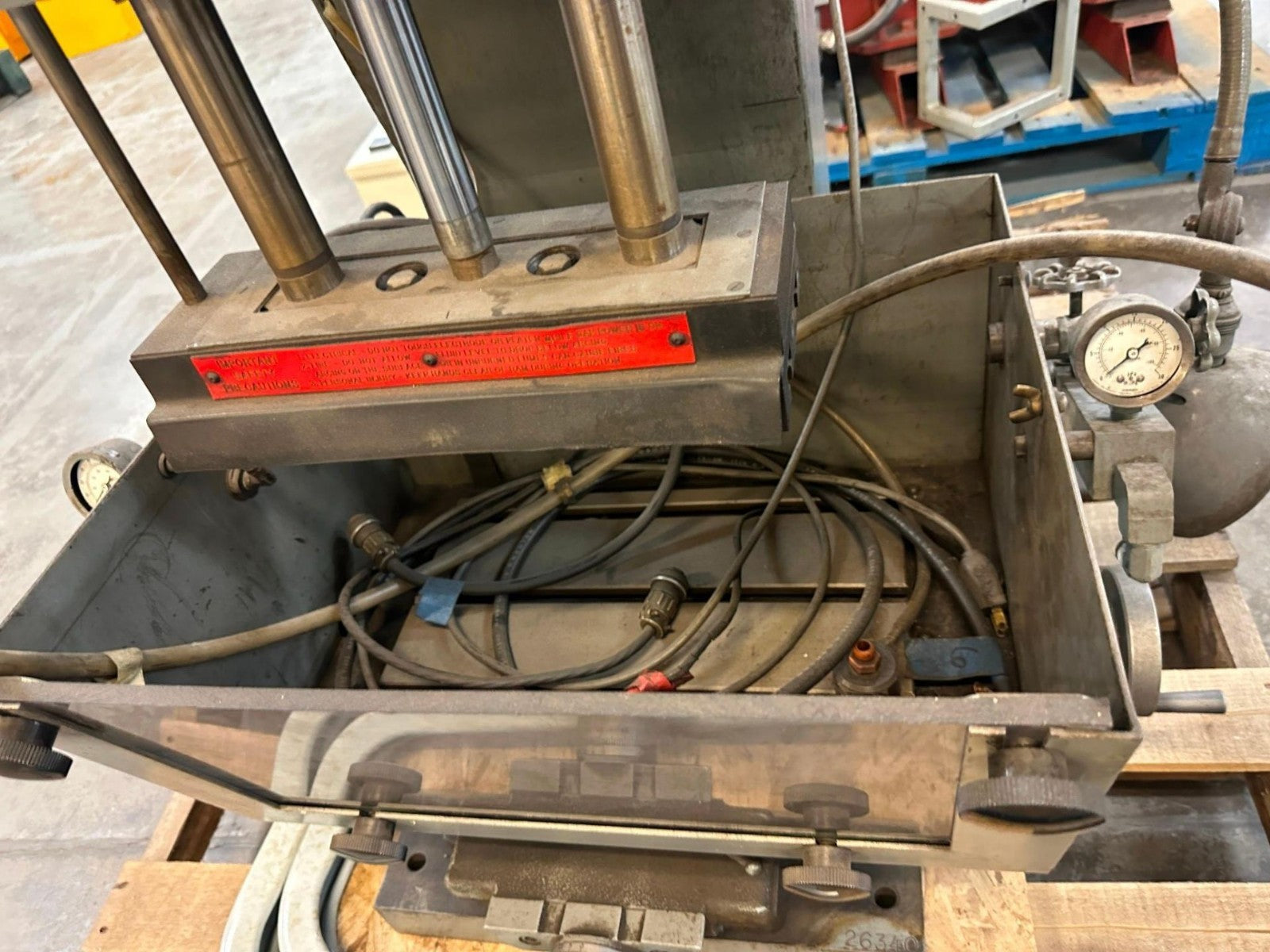

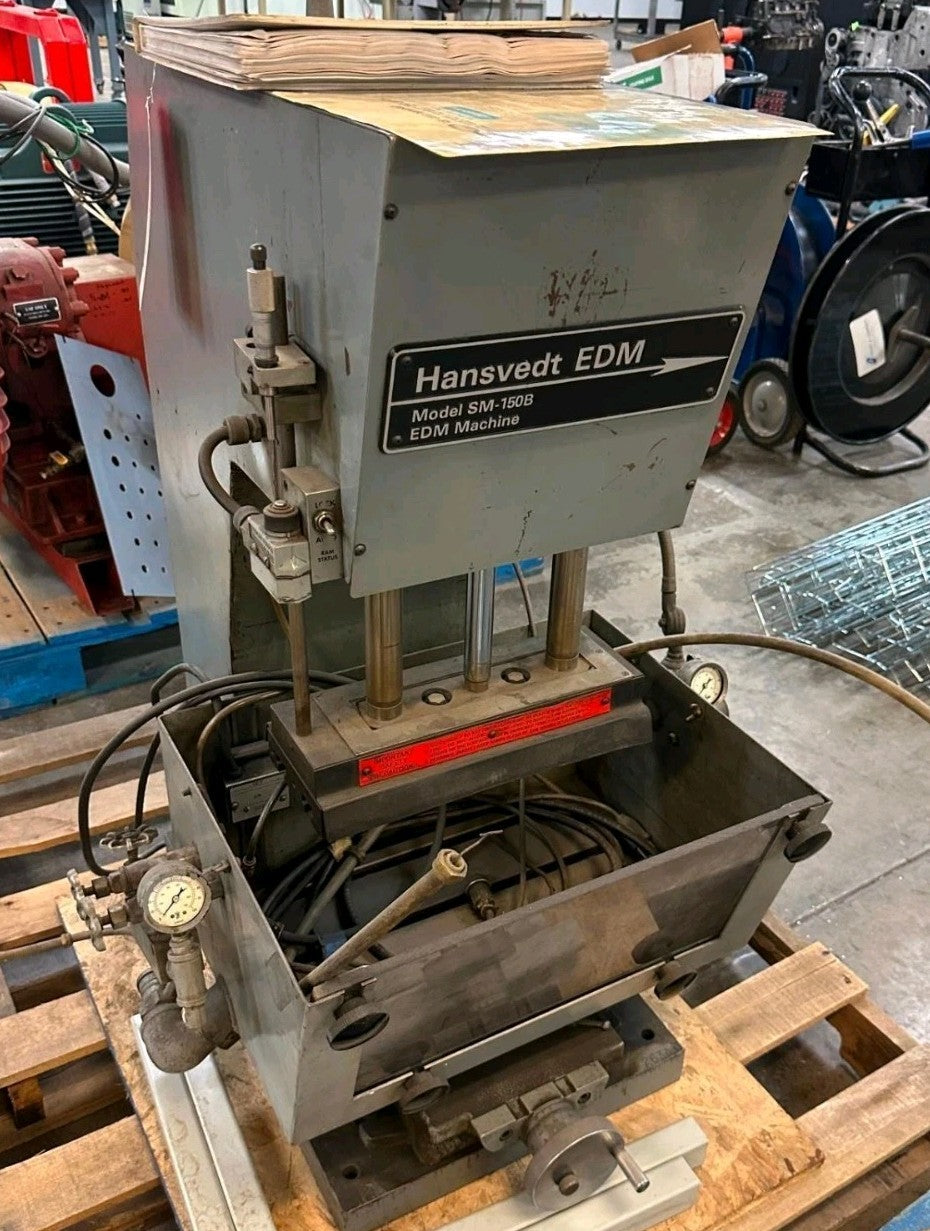

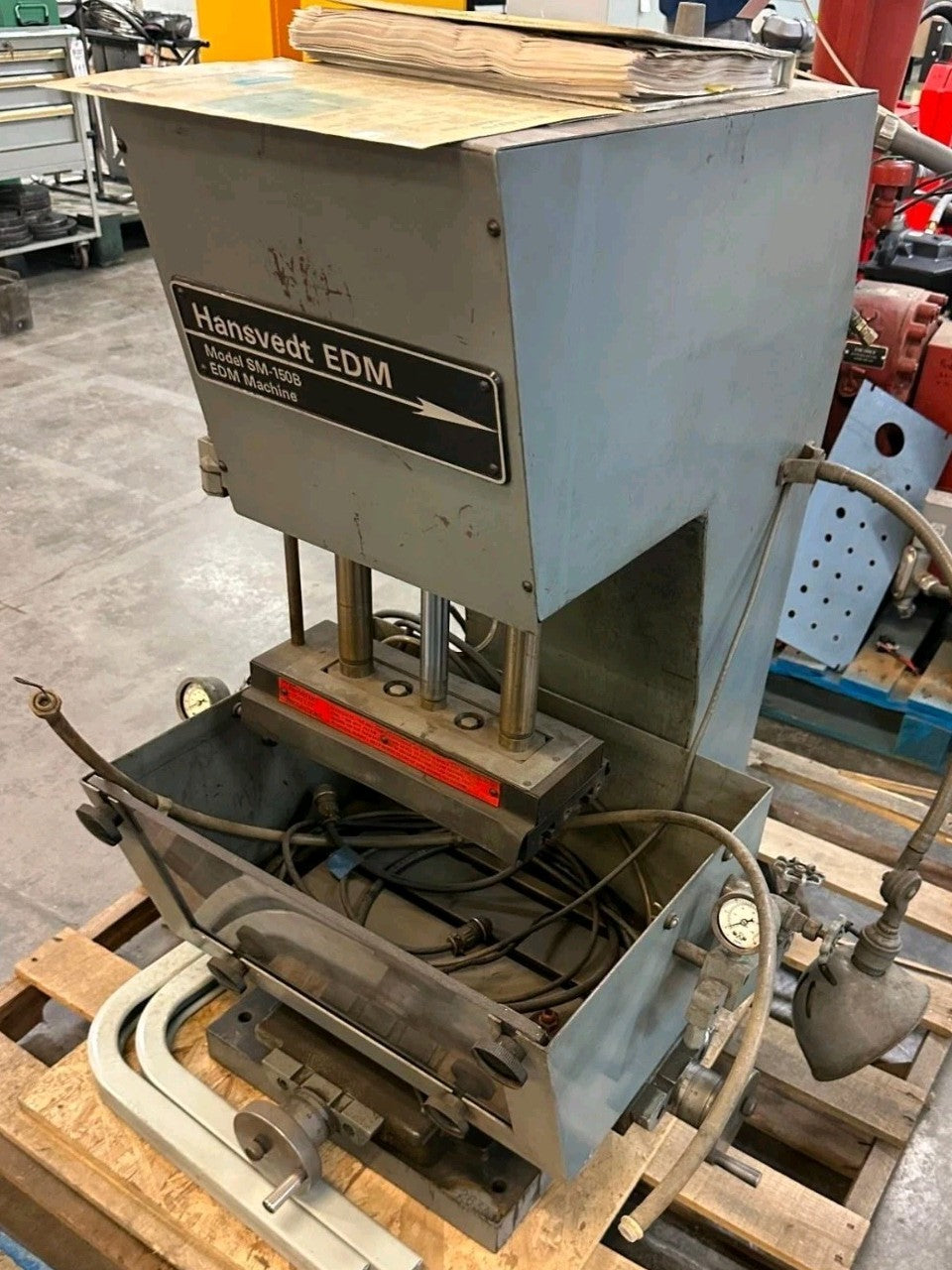

Hansvedt SM-150B Die Sinker EDM 30 AMP #D03526 Single Phase Machine *CHEAP SHIP!
$2,125.00
SPECIFICATIONS
WORKTABLE TRAVEL: 6" X 8" (152 X 203MM)
WORKTABLE SIZE: 9" X 15" (229 X 381MM)
WORKTANK SIZE: 13" X 20" X 9" DEEP (330 X 508 X 229MM DEEP)
WORKTANK CAPACITY: 30 GAL (114 LT)
RAM TRAVEL: 6" (152MM)
PLATEN SIZE: 5" X 13" (127 X 337MM)
MAXIMUM ELECTRODE WEIGHT: 300 LB (135 KG)
PLATEN-TO-TABLE DISTANCE: 16" MAX (406MM MAX)
GENERAL DIMENSIONS (HEIGHT/WIDTH/DEPTH): 72" X 60" X 30" (1829 X 1524 X 762MM)
NET WEIGHT: 1350 LB (613 KG)
COLOR: MACHINE TOOL GRAY
DIELECTRIC SYSTEM
RESERVOIR CAPACITY: 9.4 GAL (36 LT)
FLUSHING PRESSURE: ADJUSTABLE 0-50 PSI
VACUUM: 0-15 IN HG
FILTRATION: REPLACEABLE ELEMENT, 5 MICRON
POWER SUPPLY
POWER INPUT (STANDARD): 105-125 VAC, 60 HZ, 1 PH, 30-AMP
POWER INPUT (OPTIONAL): OTHER VOLTAGES AND FREQUENCIES ON REQUEST.
MAXIMUM AVERAGE CURRENT: 1, 2, 5, 10, 15, 20-AMP (40-AMP OPTIONAL)
EDM CONTROLS: % ON-TIME, FREQUENCY (.5-250KHZ), GAP SPACING, ARC-SENSOR, POLARITY, OUTPUT POWER LEVEL
ARC DURATION RANGE: 1.5 TO 1800 MICROSECONDS
SERVO CONTROLS: AUTO, MANUAL, DITHER, EDGE-FINDER, SPEED
MAXIMUM STOCK REMOVAL RATE (20-AMP): 1.2 CU IN/HR (GRAPHITE/STEEL) AND .5 CU IN/HR (GRAPHITE/STEEL)
