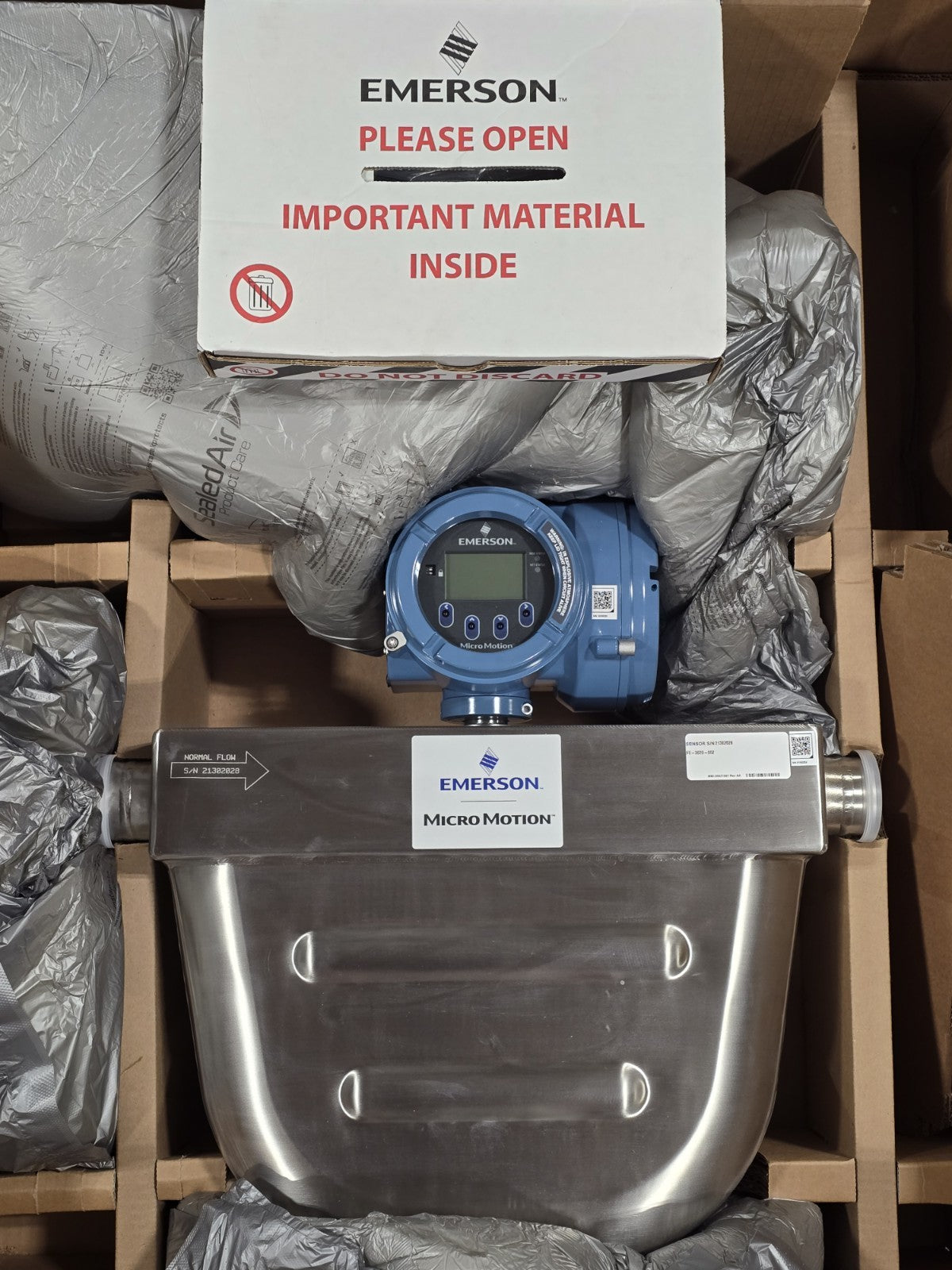

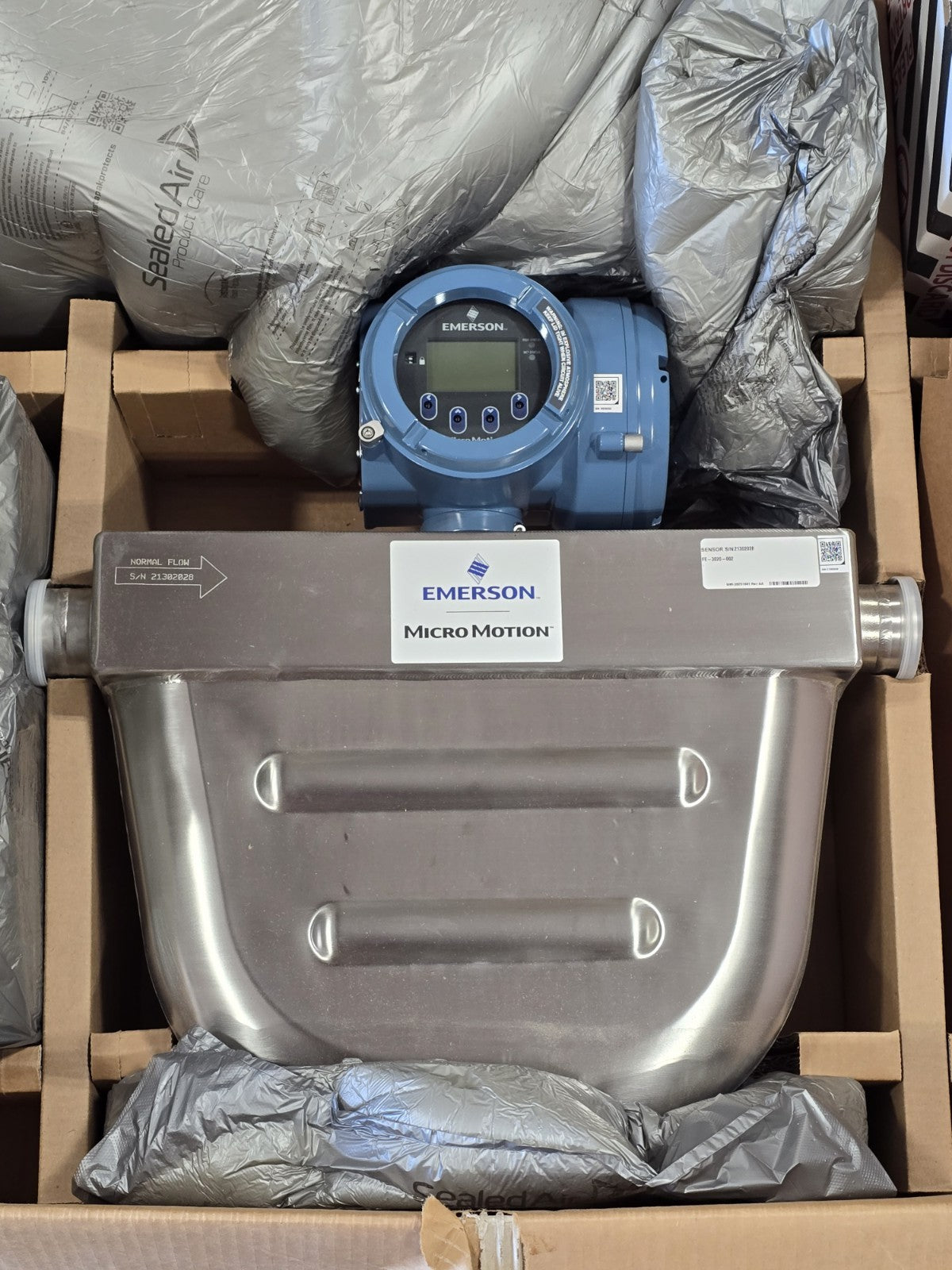

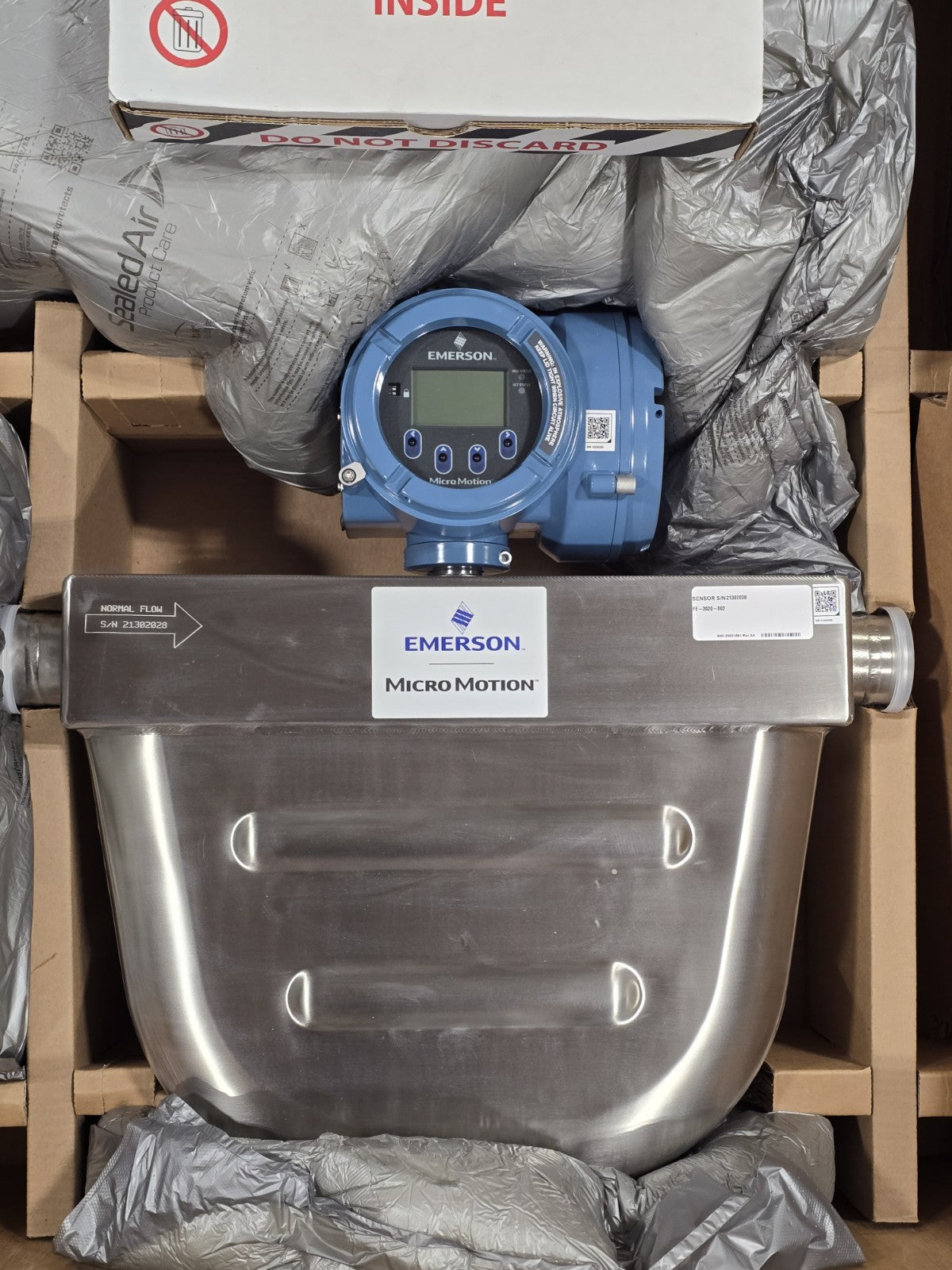

Emerson Micro Motion Elite H200 Coriolis Flow Meter w/ 5700 Transmitter 2" 2023
$9,555.00

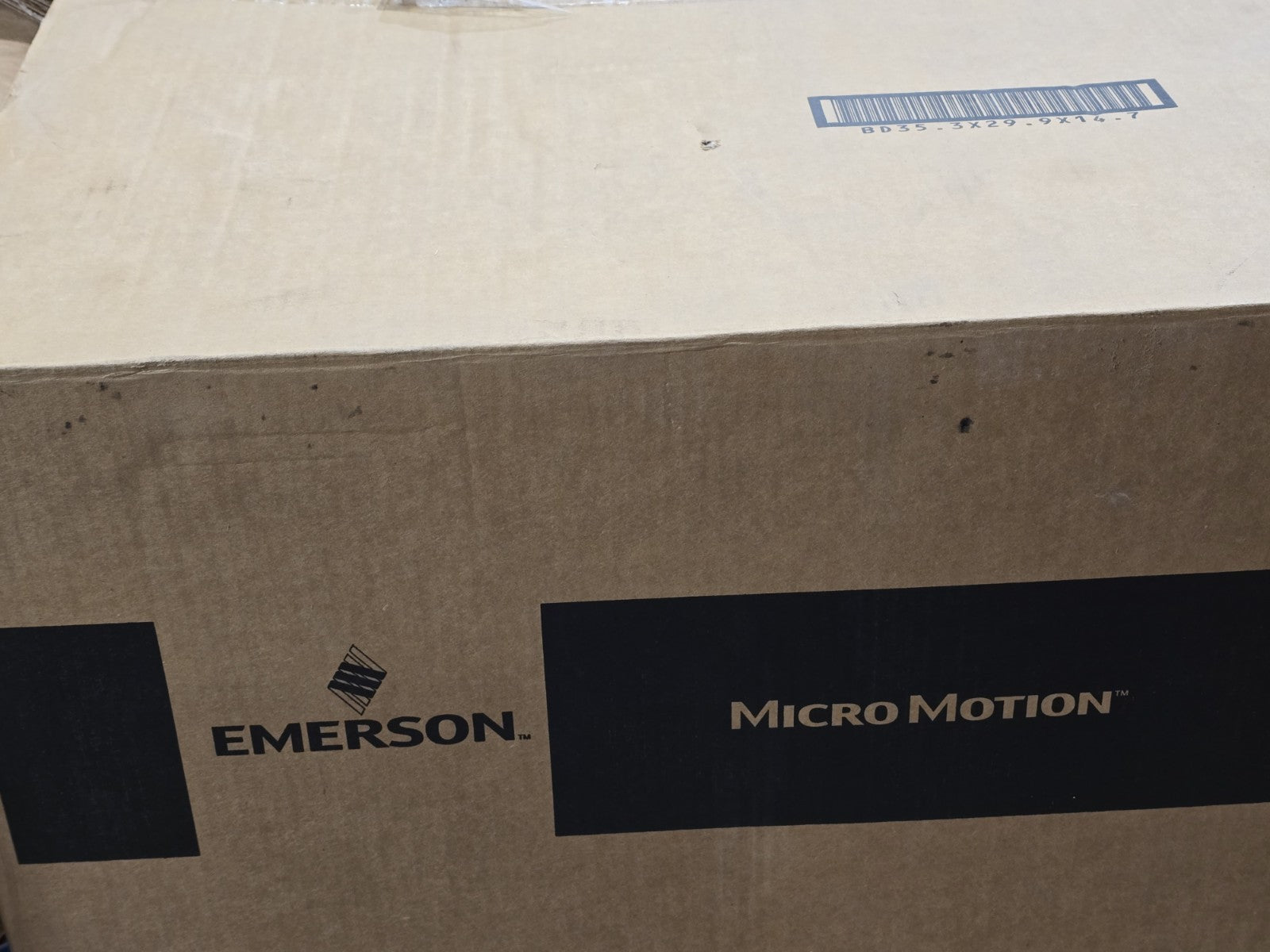

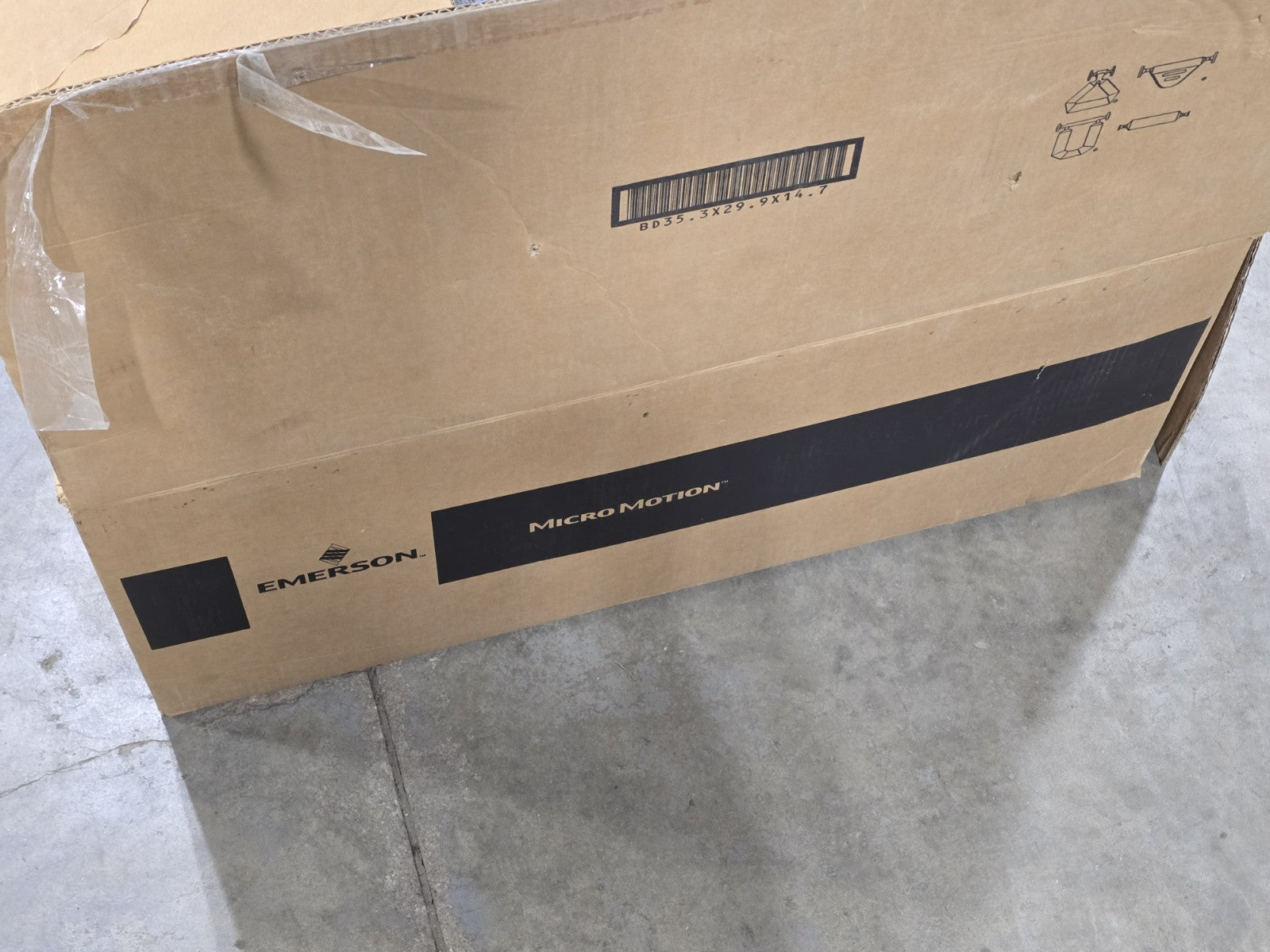

2023 unit brand new in box. Less than half of MSRP

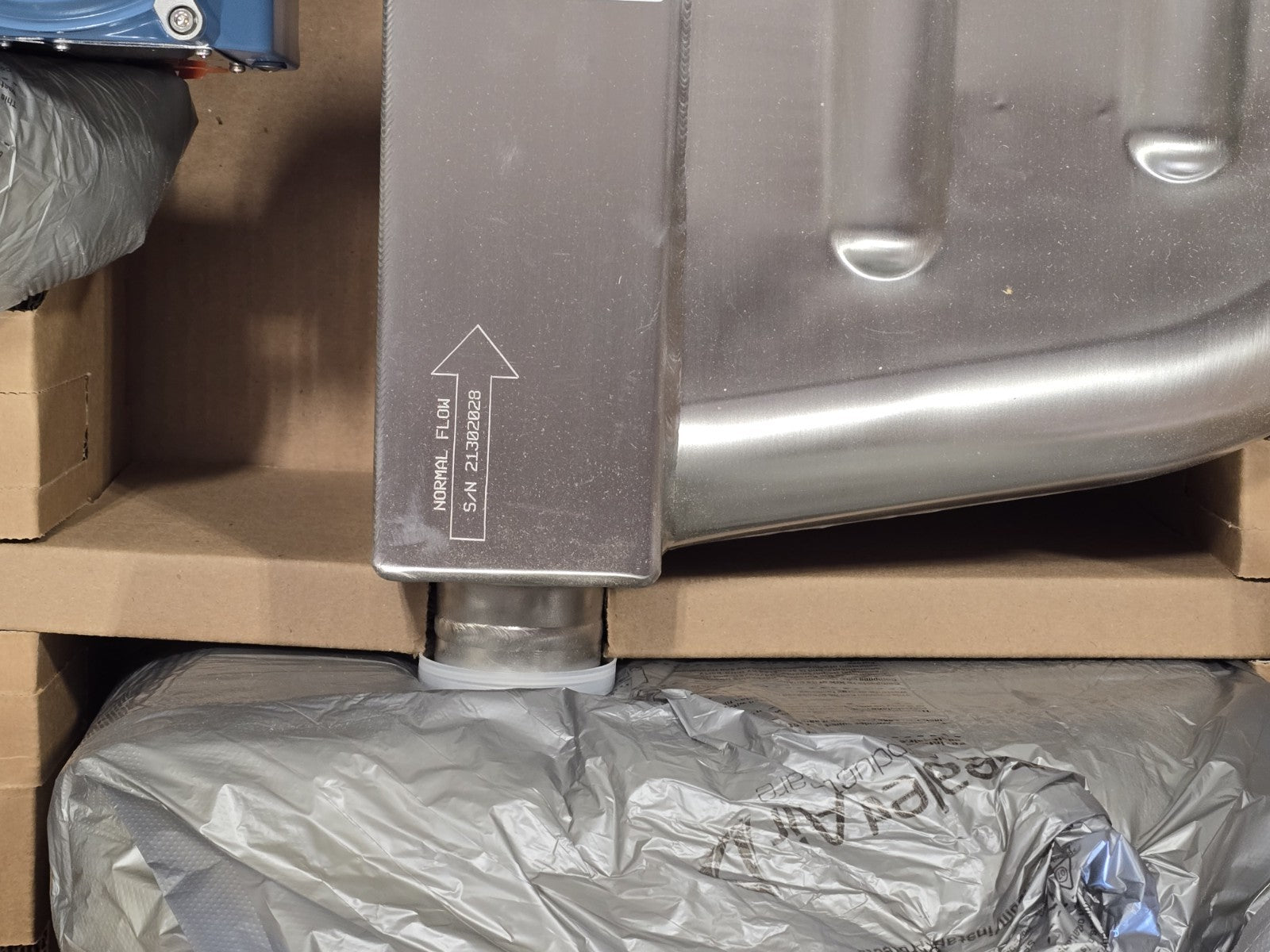

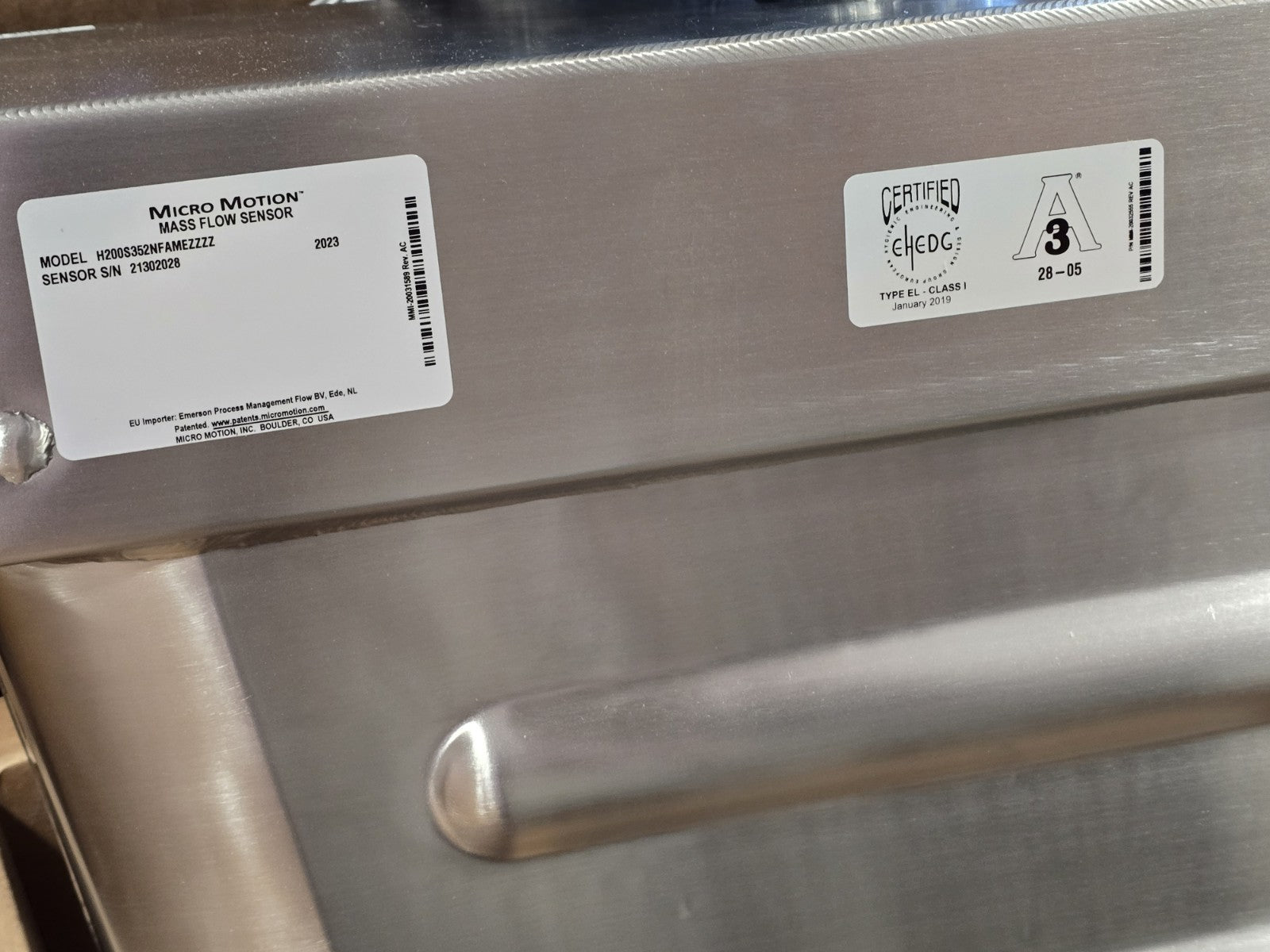

Sensor: Micro Motion Elite H200

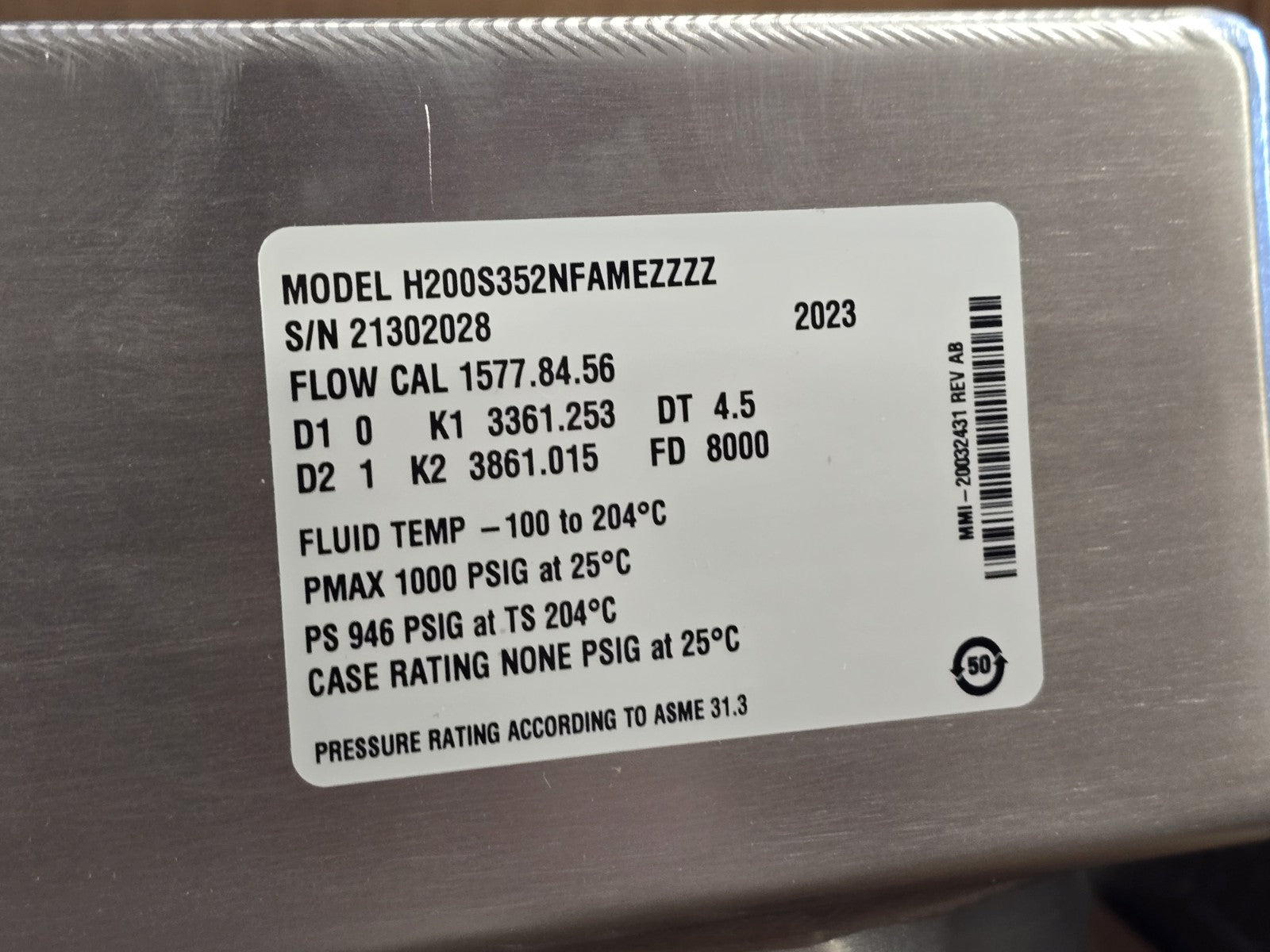

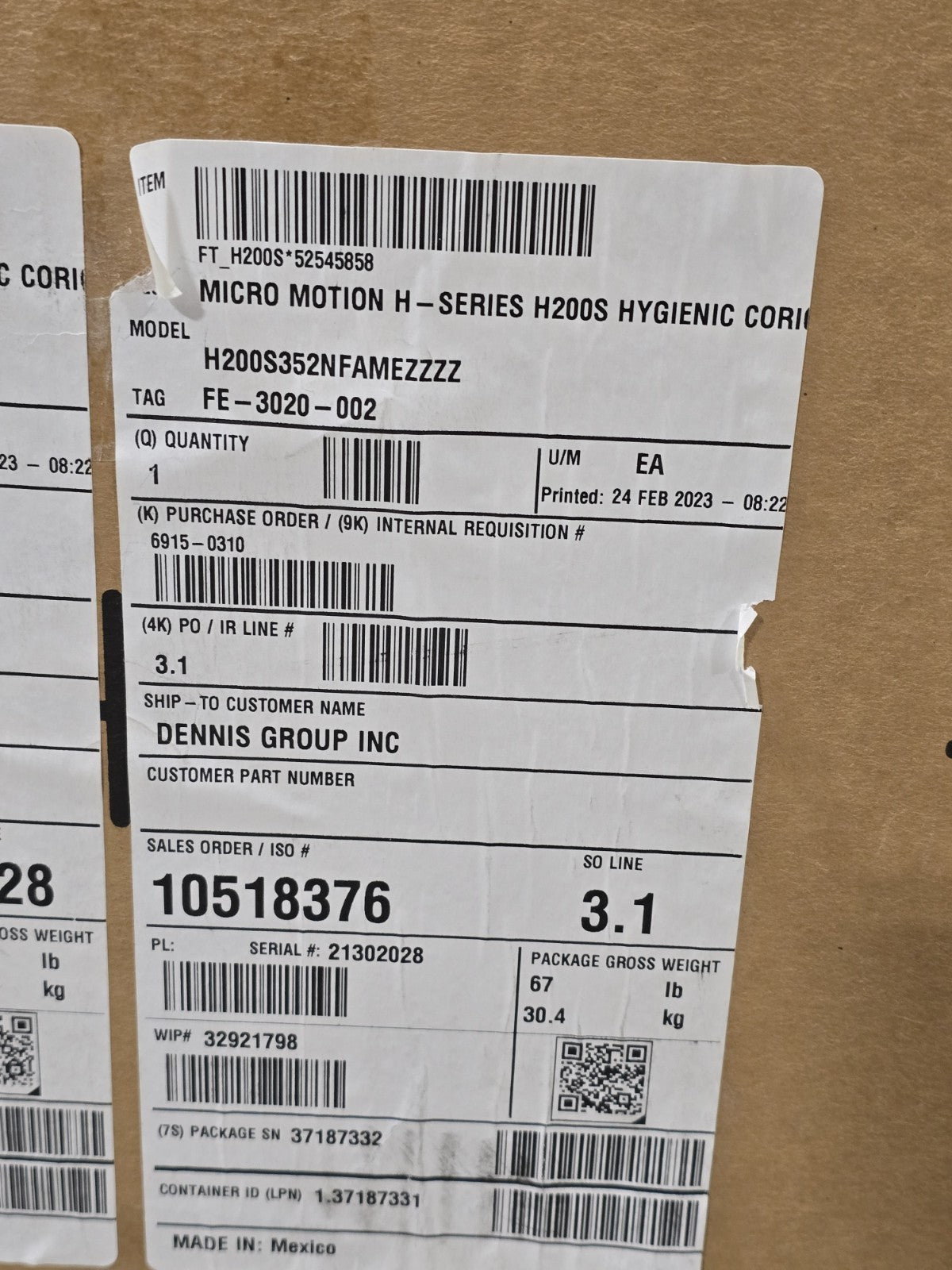

Model: H200S352NFAMEZZZZ
Series: H-Series (Hygienic/Sanitary)
Line Size: 2-inch (DN50)
Mass Flow Accuracy (Liquid): ±0.10% of rate (The "Elite" gold standard)
Mass Flow Repeatability: ±0.05%
Pressure Rating: 1000 PSIG (69 bar) @ 77°F (25°C)
Temperature Range: -100°F to 400°F (-73°C to 204°C)
Wetted Materials: 316L Stainless Steel
Surface Finish: 32 Ra (0.8 μm) – standard for 3-A and EHEDG sanitary compliance.
Mounting: 2-inch Tri-Clamp / Sanitary Fittings

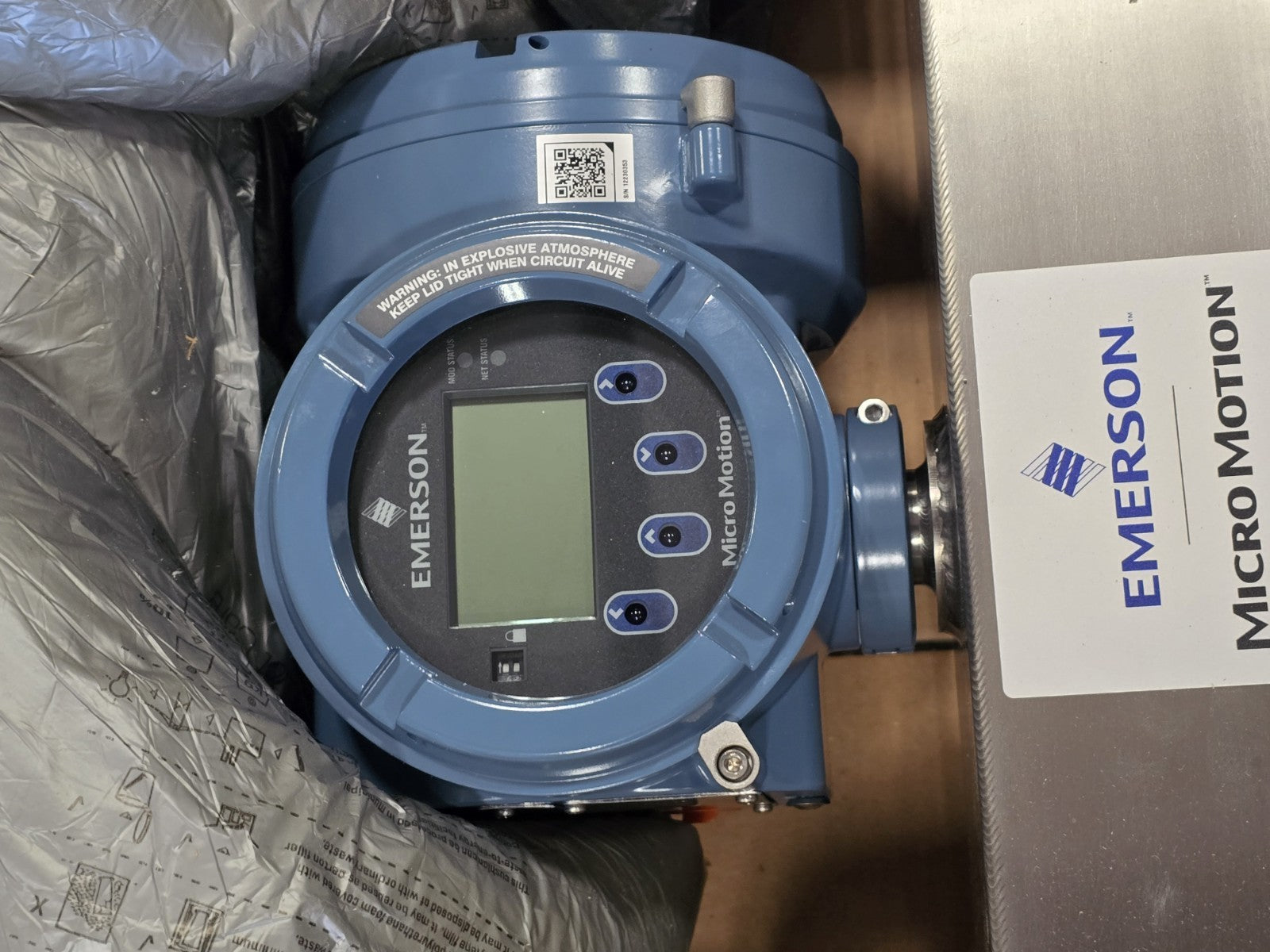

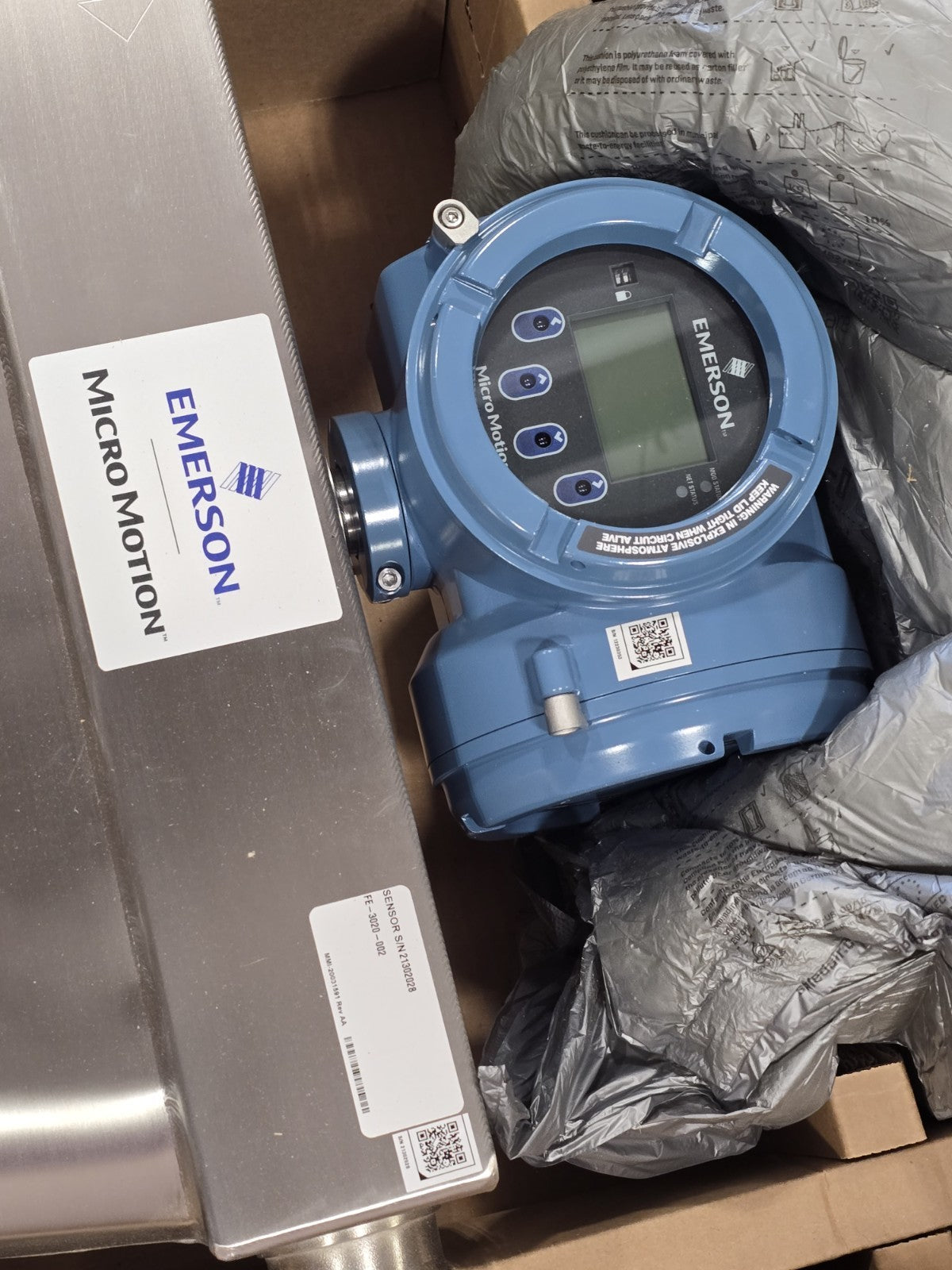

Transmitter: Micro Motion 5700 Advanced Controller

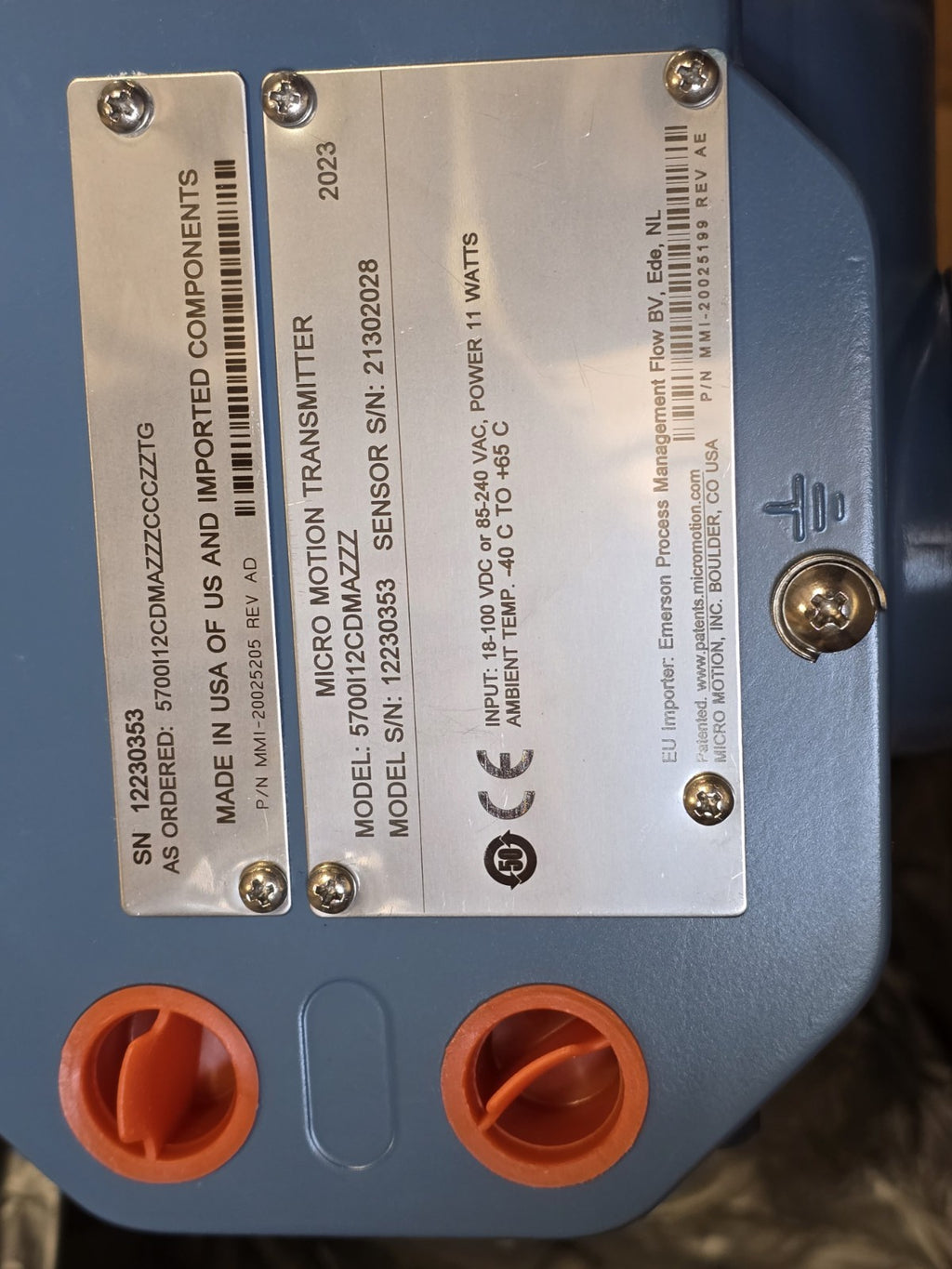

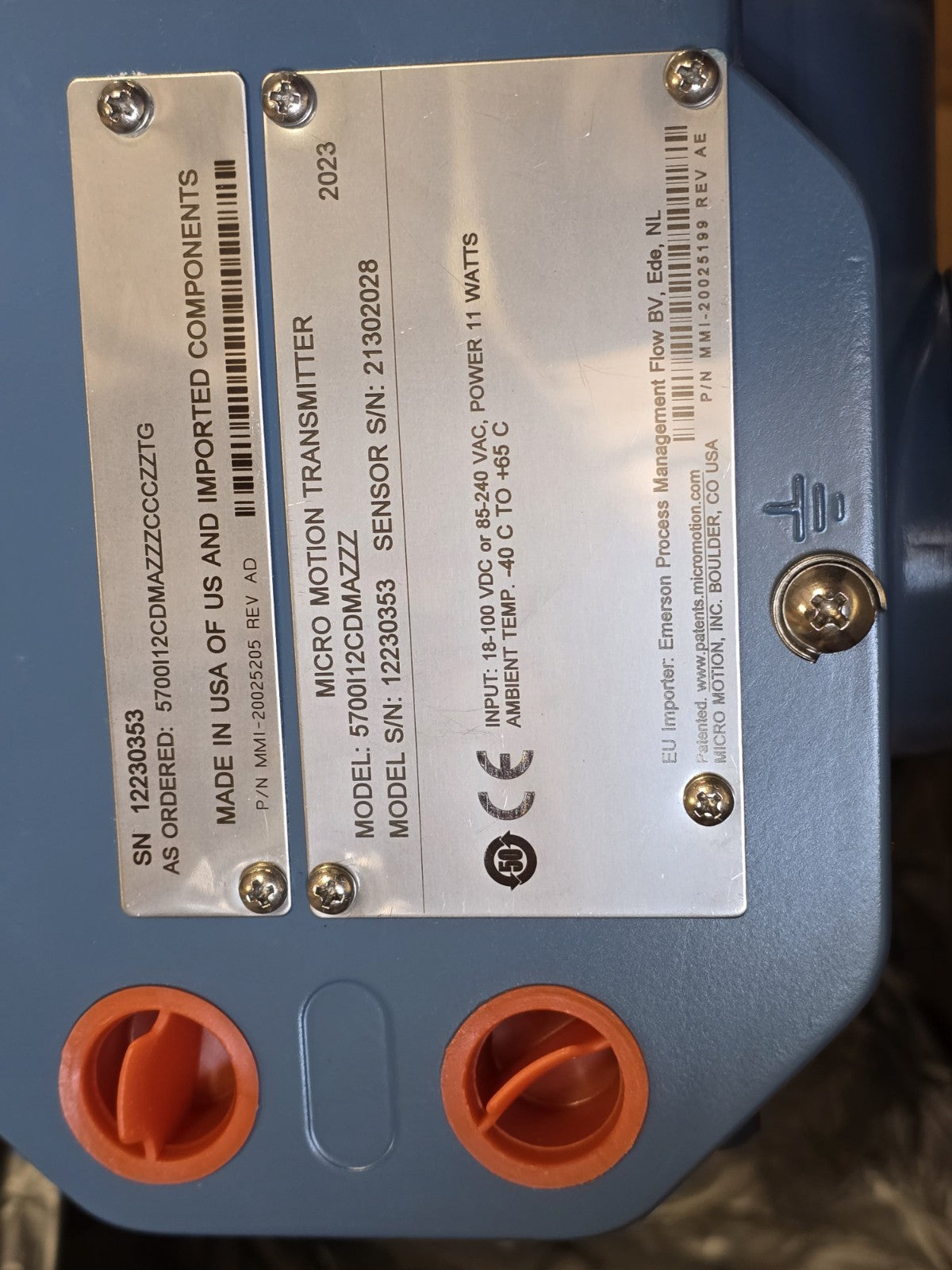

Model: 5700I12CDMAZZZCCCZZTG
Mounting: Integral (mounted directly to the sensor)
Display: Graphical backlit LCD with four-button optical controls (works through the glass)
Power Input: Self-switching (18–100 VDC or 85–240 VAC)
Outputs (I/O): Configurable up to 5 channels (includes mA/HART, Pulse, and Discrete options)
Advanced Features: * Data Historian: Captures long-term process events and fluid quality data.
Smart Meter Verification: Runs internal health checks in under 90 seconds.
Zero Verification: Confirms calibration status without stopping the process.
Compliance & Certifications
Sanitary: 3-A Authorized, EHEDG Certified (Essential for food/pharma resale).
Hazardous Area: CSA Class I, Div 1 (Explosion Proof).
Ingress Protection: NEMA 4X / IP66/67/69.
